Gaskets & Seals

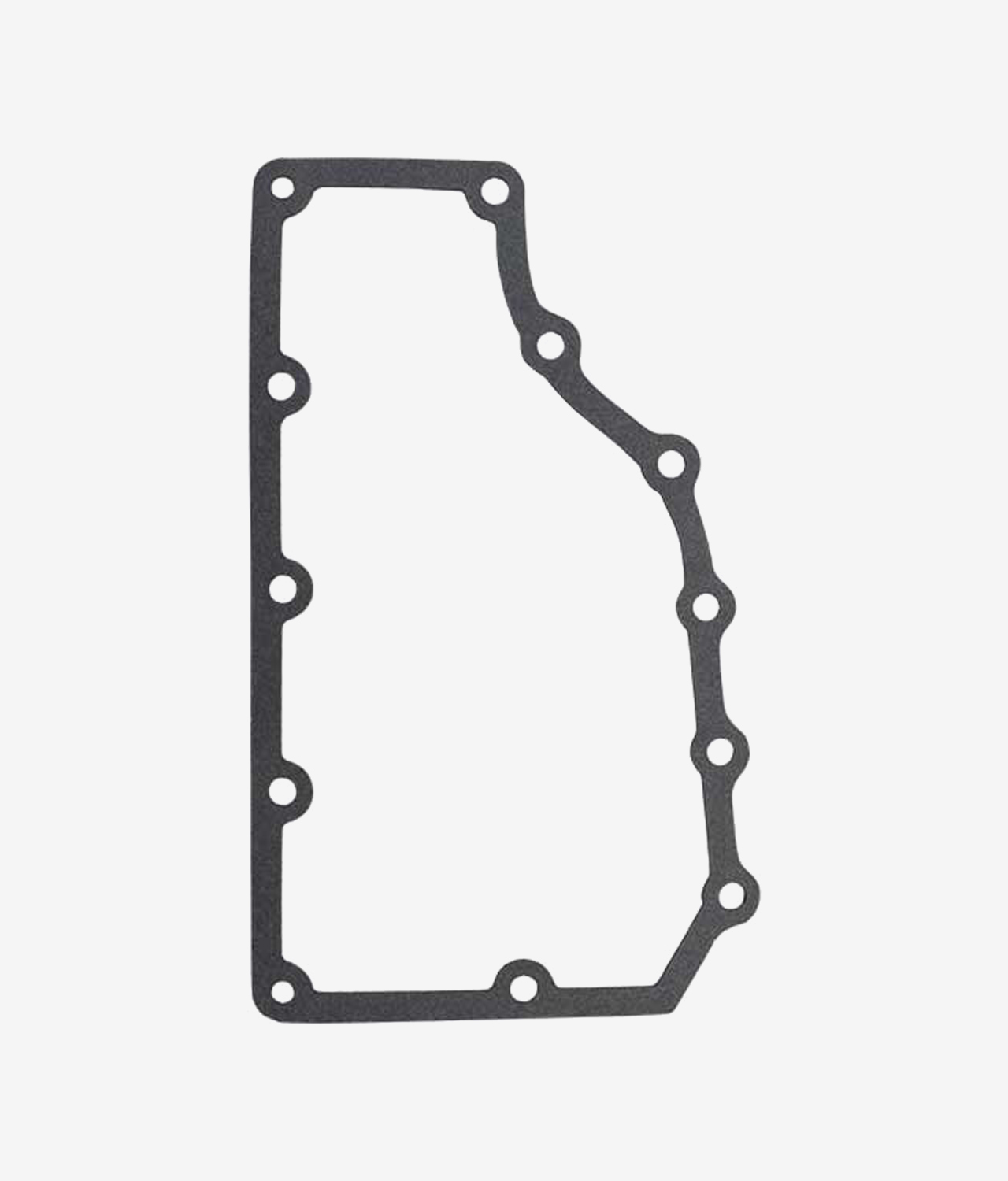

Water Passage Gasket 325211

$11.00

The Johnson/Evinrude Water Passage Gasket seals the water-passage cover to the cylinder and crankcase assembly on select OMC outboards.

This gasket helps keep cooling water contained and properly routed through the engine. A damaged or leaking gasket can cause external water leaks, reduced cooling efficiency, or overheating concerns.

Used on select 35–60 HP Johnson/Evinrude 2-cylinder outboards, including SST-45 / Formula Light applications.

Ships Immediately

SKU 0325211 Category
Replaces:0777939

Description

Johnson/Evinrude Water Passage Gasket 0325211

The Johnson/Evinrude Water Passage Gasket seals the water-passage cover to the cylinder and crankcase assembly on select OMC outboard engines.

This gasket is part of the engine cooling system and helps keep cooling water contained inside the intended passages as it moves through the powerhead.

It is commonly used on select Johnson/Evinrude 35, 40, 45, 48, 50, 55, and 60 HP 2-cylinder engines and is also applicable to the SST-45 / Formula Light powerhead.

What the Water Passage Gasket Does

Cooling water must be directed through specific passages in the cylinder block and cylinder head area.

The gasket seals the water-passage cover so water stays inside those passages instead of leaking around the cover.

A proper seal helps maintain:

  • Correct cooling-water routing
  • Stable engine temperature
  • Proper water pressure through the powerhead
  • Leak-free operation
  • Reliable cooling under load

Because the gasket sits directly in the cooling system, even a small sealing problem can become more noticeable as water pressure increases.

Common Signs of a Water Passage Gasket Problem

A damaged or deteriorated gasket may cause:

  • Water leaking around the passage cover
  • Visible moisture on the powerhead
  • Salt or mineral deposits around the cover
  • Reduced cooling-water flow
  • Overheating concerns
  • Steam or unusually high engine temperature
  • Corrosion around the gasket surface
  • Evidence of previous gasket failure

If water is leaking from this area, inspect both the gasket and the mating surfaces before installing a replacement.

Stock Johnson/Evinrude Applications

Is used on a broad range of 2-cylinder Johnson/Evinrude outboards.

Common horsepower applications include:

  • 35 HP
  • 40 HP
  • 45 HP
  • 48 HP
  • 50 HP
  • 55 HP
  • 60 HP

Because OMC used this gasket across multiple years and engine configurations, always verify the exact model number and original part number before ordering.

SST-45 / Formula Light Application

The same water passage gasket is used in the cooling system on SST-45 / Formula Light powerheads.

On a race engine, cooling-system sealing is especially important because the motor spends long periods operating at high RPM and heavy load.

At Liquid Revolutions, we inspect the water-passage gasket area whenever the cooling cover is removed. A small leak or partially damaged gasket can become a much bigger problem once the engine is running hard on the course.

During SST-45 service, inspect:

  • Water-passage cover
  • Gasket sealing surface
  • Cylinder and crankcase mating surface
  • Cooling passages
  • Drain elbow
  • Indicator hose
  • Water pump condition

Keeping the entire cooling path clean and properly sealed helps eliminate one more potential source of overheating or inconsistent water flow.

Why the Gasket Should Be Replaced During Service

Once the water-passage cover has been removed, the old gasket may no longer seal correctly.

Over time, the gasket can:

  • Compress
  • Harden
  • Tear
  • Stick to the cover
  • Separate during removal
  • Develop corrosion around the sealing surface

Reusing an old gasket increases the chance of a water leak after reassembly.

For that reason, replacement is recommended whenever the cover has been removed for cooling-system service.

Installation & Inspection Tips

Before installing the new gasket:

  • Remove all old gasket material
  • Clean both mating surfaces
  • Inspect for corrosion or pitting
  • Make sure cooling passages are open
  • Check the cover for distortion or damage
  • Install the gasket in the correct orientation
  • Tighten the cover hardware evenly

Do not use excess sealant that could squeeze into the cooling passages and restrict water flow.

Key Features & Benefits

  • Cooling-System Seal – Helps keep water contained within the engine cooling passages
  • OEM Johnson/Evinrude Reference – Part number 325211 / 0325211
  • 35–60 HP Applications – Used on many OMC 2-cylinder outboards
  • SST-45 Compatible – Used in Formula Light race-engine cooling systems
  • Helps Prevent Water Leaks – Maintains a sealed water-passage cover
  • Useful During Powerhead Service – Recommended whenever the cooling cover is removed

Additional information

Weight 0.25 lbs
Dimensions 12 × 12 × 0.25 in
